Santa Clarita Saunas: Sauna Electrical: 240V Circuits and Panels in Santa Clarita
Santa Clarita Saunas covers the electrical side of home sauna installation in the Santa Clarita Valley — a load calculation on the existing panel, a dedicated 240V circuit sized to the heater's manual, wire run in conduit or buried to the sauna, a disconnect where required, and a subpanel or panel upgrade when a 1970s or 1980s 100-amp panel has no room.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
Heater size, amps and wire
| Heater | Current at 240V | Typical breaker | Typical copper wire |
|---|---|---|---|
| 4.5 kW | About 19 A | 25–30 A | 10 AWG |
| 6 kW | About 25 A | 35–40 A | 8 AWG |
| 8 kW | About 33 A | 45–50 A | 8 or 6 AWG |
| 9 kW | About 37.5 A | 50 A | 6 AWG |
The heater's manual names the breaker and the wire size, and some heaters also need a separate low-voltage or 120V feed for the controller and the light. Wire size also grows with long runs to keep voltage drop down.
Is there room in the panel?
Many valley homes built in the 1970s and 1980s have a 100-amp panel already carrying an air conditioner, a dryer, an electric range or an EV charger. A load calculation adds the sauna to that list. If there is capacity and space for a two-pole breaker, the circuit goes in directly. If not, the options are a subpanel fed from the main, load management on another appliance, or a service upgrade with the utility.
Getting the circuit to the sauna
- Indoor sauna near the panel — a short run inside the garage wall or in surface conduit.
- Backyard sauna — conduit along the house wall and a buried run in a trench to the sauna, typically 18–24 inches deep for PVC conduit, as the permit specifies.
- Disconnect — a lockable disconnect within sight of the sauna where the electrical code or the heater manual calls for it.
- Controller and light — wired as the heater maker shows, often from the same circuit through the control box.
The per-foot rate in the price tool covers the wire, conduit and trench for a typical run from the panel.

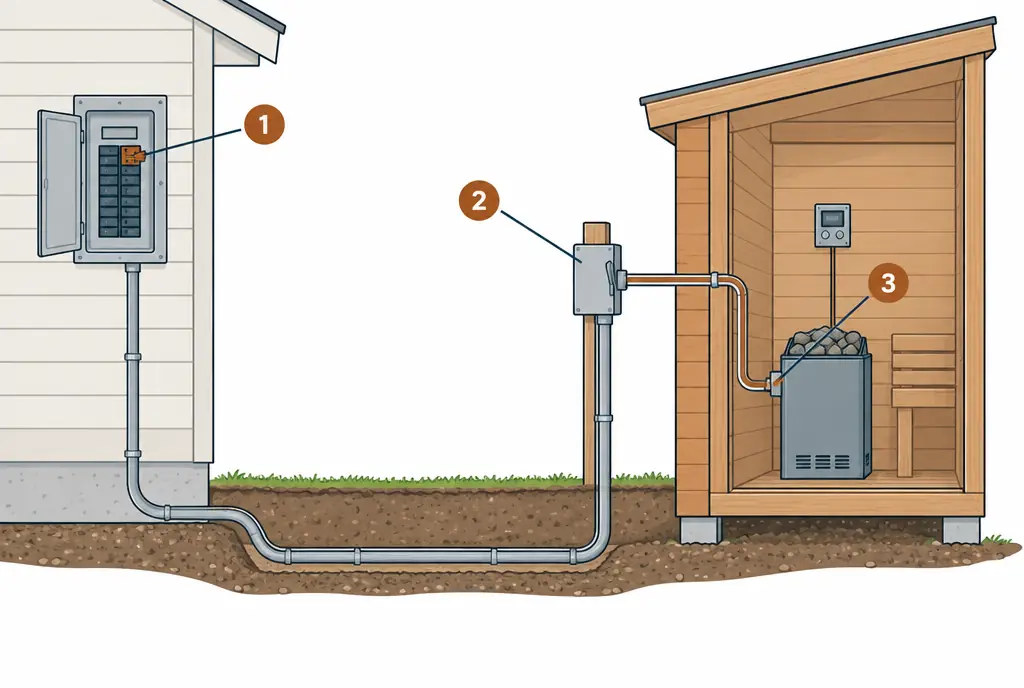

What the numbered markers show
- A two-pole breaker in the panel feeds only the sauna; its size comes from the heater's installation manual.
- The conduit route ends at a disconnect near the sauna, so the heater can be switched off at the sauna itself.
- Inside the sauna, the wiring to the heater and its control is the heat-rated type the heater manual specifies.
Permits and inspection
Running the circuit, and any subpanel or panel upgrade, is permitted electrical work that the City of Santa Clarita (or LA County in unincorporated areas) inspects, typically before the trench is closed and after the connection is made. The City of Santa Clarita, or LA County Building and Safety in Stevenson Ranch, Castaic and other unincorporated areas, confirms what applies to a specific address.
The sauna's heater can only be as good as the circuit behind it.
Sauna Electrical & 240V Circuits — common questions
How much does a 240V circuit for a sauna cost?
Roughly $12–$30 per foot of run in 2026, so a sauna 40 ft from the panel lands roughly at $480–$1,200 for the run. A subpanel or panel upgrade adds $1,200–$3,500 where the panel is full.
Can a sauna share a circuit with a hot tub?
Generally no. Each appliance gets the dedicated circuit its manual specifies.
